Ebike Speed Controller System

Tech

ESP32, Motor, Oled, Arduino

Project Description

The ESP32-based eBike controller system is designed to offer a low-cost, efficient, and user-friendly solution for electric bike enthusiasts. This innovative system utilizes the powerful and versatile ESP32 microcontroller to manage and control the speed of the eBike, providing a seamless and enjoyable riding experience. The key feature of this system is its ability to display real-time speed information on a screen, ensuring that riders can monitor their speed effortlessly and stay informed about their riding performance.

The controller is engineered to offer precise and responsive motor speed control, allowing riders to adjust their speed smoothly and efficiently. This enhances the overall safety and comfort of the ride, making it suitable for various terrains and riding conditions. The system is designed with cost-effectiveness in mind, making it an affordable option for eBike manufacturers and DIY enthusiasts alike.

Problem Statement

Current eBike controllers are expensive, lack efficient motor speed control, and do not provide real-time speed display, necessitating a low-cost, efficient, and user-friendly solution.

Objective

The primary objective of this project is to design and implement a low-cost, efficient, and reliable eBike speed controller system using an ESP32 microcontroller. The system aims to provide precise control over the motor speed while offering a real-time speed display to enhance the riding experience. By leveraging the powerful features of the ESP32, the controller ensures smooth acceleration, deceleration, and safe operation in various riding conditions. The project focuses on affordability and accessibility, making it a feasible solution for both eBike manufacturers and DIY enthusiasts. Additionally, the OLED display integration allows riders to monitor their speed conveniently, improving safety and ride management. The system is intended to bridge the gap between cost-effectiveness and performance, eliminating the need for expensive commercial controllers while delivering similar or even better efficiency and usability. Ultimately, the project provides an innovative, budget-friendly, and user-friendly solution for electric bike control.

Abstract

This project presents a low-cost and efficient eBike speed controller system based on the ESP32 microcontroller. Designed with affordability and usability in mind, the system controls the motor speed while displaying real-time riding speed on an OLED display. The ESP32’s dual-core capability and integrated Wi-Fi/Bluetooth features make it ideal for precise speed regulation and potential future smart integrations. The controller ensures smooth and responsive motor control, enhancing ride comfort and safety across various terrains. A key highlight is the OLED display, which provides continuous updates on riding speed, enabling riders to maintain awareness and improve performance. The project focuses on reducing costs compared to existing commercial eBike controllers while maintaining high efficiency and reliability. With potential applications in personal mobility, green transportation, and DIY electric vehicle development, this system offers a scalable and practical solution for modern electric bike enthusiasts.

Applications

• Personal electric bikes for daily commuting.
• Rental eBikes in urban areas for affordable green transportation.
• DIY electric vehicle projects for hobbyists and students.
• Smart mobility solutions integrated with IoT.
• Affordable controllers for small-scale eBike manufacturers.

Advantages

• Low-cost solution compared to commercial eBike controllers.
• Real-time speed monitoring through OLED display.
• Precise and efficient motor control for smoother rides.
• Customizable design for different eBike models.
• Lightweight and compact system with minimal power consumption.

Limitations

• Limited motor power handling compared to high-end controllers.
• OLED display visibility may reduce in direct sunlight.
• System performance depends on battery capacity and motor type.
• Not waterproof by default; requires additional casing for outdoor use.
• Advanced features like regenerative braking are not included.

Future Scope

• Integration with GPS for navigation and trip tracking.
• Smartphone app connectivity via Bluetooth/Wi-Fi for remote monitoring.
• Battery health monitoring and range prediction system.
• Addition of regenerative braking to improve efficiency.
• AI-based adaptive speed control for different terrains and rider profiles.

Conclusion

The ESP32-based eBike speed controller system provides a cost-effective, efficient, and user-friendly solution for electric bike riders and enthusiasts. By combining precise motor control with a real-time OLED speed display, the system ensures safe and enjoyable rides across varying conditions. Its affordability makes it accessible to DIY developers and small-scale manufacturers, while its efficiency ensures performance comparable to higher-cost alternatives. Although the system has limitations such as limited power handling and weather resistance, its scalability and flexibility open the door to future enhancements like GPS tracking, regenerative braking, and smartphone connectivity. Overall, this project demonstrates how low-cost hardware such as the ESP32 can deliver impactful solutions in the growing eBike industry, promoting green transportation and smart mobility solutions. The project lays a solid foundation for future innovations while fulfilling the need for an affordable, efficient, and reliable eBike controller.

Report Contents

• Components List (BOM: Bill of Material)
• Block Diagram
• Flow Chart
• Components: Name, Images, Details
• Circuit Diagram
• Problem Statement
• Abstract
• Introduction
• Methodology
• Challenges and Solutions
• Performance Analysis
• Advantages
• Limitation
• Application
• Future Scope
• Conclusion
• Output Images

Project Deliverables

• Project Hardware
• Project Report

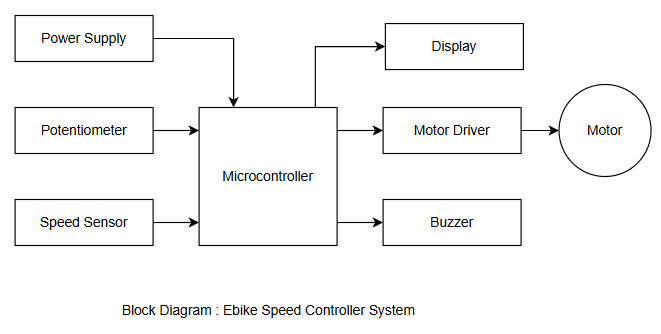

Block Diagram
