Radar System

Tech

ThingsSpeak, Static Website, Mobile App, Servo soft gun

Project Description

The Radar System is an advanced object detection and tracking solution designed to enhance security and surveillance capabilities. Utilizing sophisticated radar technology, this system accurately detects objects within its sensing area and determines their precise locations. Once an object is detected, the system dynamically points a servo gun towards the target, ensuring immediate response to potential threats.

A key feature of this Radar System is its ability to log data with time stamps, creating a comprehensive record of all detected objects and their movements. This data is then uploaded to a secure server, where it can be accessed and analyzed in real-time. By examining the object detection patterns and coordinates, the system is capable of predicting future object locations, enabling preemptive actions and improved situational awareness.

The system's robust design and accurate detection capabilities make it suitable for a wide range of applications, including military defense, perimeter security, and automated surveillance. Its ability to provide real-time data logging and predictive analytics ensures a proactive approach to security, enhancing both efficiency and effectiveness. With this Radar System, users can achieve a higher level of precision and reliability in object detection and response.

Objective

The objective of this project is to design and develop a cost-effective Radar System with Servo Gun Integration capable of detecting, tracking, and predicting the movement of objects within its sensing area. By leveraging ultrasonic/infrared radar sensors, servo motors, and IoT connectivity via ThingSpeak, the system ensures real-time object detection and accurate positioning of a servo-operated soft gun towards detected objects. The project also aims to maintain a detection log with timestamps, which is stored on a cloud server for analysis and future reference. Predictive analytics are applied to forecast potential object movement, enhancing proactive response measures. The ultimate goal is to deliver a reliable, automated surveillance solution that can be monitored via a static website and mobile app. This integration ensures enhanced security, operational efficiency, and adaptability for various applications including perimeter defense, military training, and smart security systems.

Abstract

The proposed Radar System is a real-time object detection and tracking solution designed to enhance modern surveillance. The system employs radar-based sensors for precise object detection and servo motors for automatic aiming of a soft gun towards targets. Detected object coordinates are logged with timestamps and uploaded to ThingSpeak for cloud storage and analysis. A static website and mobile app provide easy access to detection records and real-time monitoring. The system’s predictive capability analyzes detection trends to anticipate future movements, enabling preemptive threat response. Its design emphasizes low-cost implementation, portability, and integration with IoT platforms for remote accessibility. Applications range from military defense and perimeter security to academic research and robotics projects. By combining detection, response, data logging, and prediction, the system offers a robust, intelligent, and automated surveillance framework that improves efficiency, accuracy, and security in real-world environments.

Problem Statement

Current surveillance systems lack precise object detection, tracking, and predictive capabilities, limiting response efficiency. An advanced radar system with servo aiming and predictive analytics is required for enhanced security and surveillance.

Applications

• Perimeter Security – Monitoring and alerting for restricted or sensitive zones.
• Military Training – Automated target tracking and soft-gun firing for practice.
• Smart Homes – Detecting intruders and alerting homeowners via mobile app.
• Research & Education – Hands-on learning in IoT, automation, and robotics.
• Wildlife Monitoring – Tracking movements in conservation areas non-intrusively.

Advantages

• Real-Time Tracking with accurate servo-based aiming.
• Cloud Integration (ThingSpeak) for logging and predictive analytics.
• Remote Accessibility via website and mobile app.
• Cost-Effective Implementation using affordable sensors and microcontrollers.
• Scalable Design adaptable to multiple use cases.

Limitations

• Limited Range due to sensor constraints (ultrasonic/IR).
• Environmental Interference (rain, fog, and obstacles reduce accuracy).
• Prediction Accuracy depends on historical data quality.
• Servo Power Limitations for aiming heavy payloads.
• Dependency on Internet for cloud logging and mobile access.

Future Scope

• AI Integration for advanced object recognition and classification.
• Long-Range Radar Sensors for wider coverage.
• Solar-Powered Operation for outdoor and remote use.
• Integration with Drones for mobile surveillance.
• Enhanced Data Analytics using machine learning for better prediction.

Conclusion

The Radar System with Servo Gun Integration provides a reliable, automated, and intelligent surveillance mechanism that addresses the limitations of conventional monitoring systems. By combining radar detection, servo-controlled aiming, and IoT-based data logging, it ensures real-time responsiveness and comprehensive historical tracking. Its predictive analytics enable proactive security measures, making it suitable for high-security areas, research, and educational purposes. Despite its limitations in range and environmental sensitivity, the system’s modular and scalable design offers strong potential for upgrades, such as AI-enhanced recognition and long-range capabilities. Accessible through both a static website and mobile app, the system empowers users with convenience and real-time awareness. With further improvements, this radar-based surveillance system can evolve into a cutting-edge solution for modern security and monitoring needs, bridging the gap between affordability and advanced automation.

Report Contents

1. Components List (BOM: Bill of Material)
2. Block Diagram
3. Flow Chart
4. Components : Name, Images, Details
5. Circuit Diagram
6. Problem Statement
7. Abstract
8. Introduction
9. Methodology
10. Challenges and Solutions
11. Performance Analysis
12. Advantages
13. Limitation
14. Application
15. Future Scope
16. Conclusion
17. Output Images

Project Deliverables

1. Project Hardware
2. Project Report
3. Project Simulation

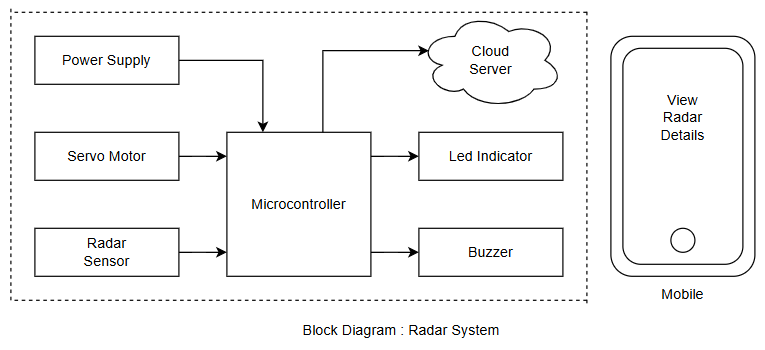

Block Diagram
