Smart Irrigation System

Tech

ESP32, Soil Moisture Sensor, Relay Module, ThingsSpeak, Static Website, Mobile App, Predictive Analytics, Data Logging

Abstract

A Smart Irrigation System using an ESP32 microcontroller detects soil moisture and controls a relay to automatically switch irrigation pumps on or off. Logged data—including moisture levels and pump status—is uploaded to ThingsSpeak, enabling remote monitoring through a static website and mobile app. Leveraging predictive analytics, the system forecasts how quickly soil dries, enabling proactive irrigation scheduling to conserve water and maintain healthy plant growth.

Keywords

ESP32, Soil Moisture, Relay, ThingsSpeak, IoT, Predictive Analytics, Automated Irrigation, Remote Monitoring, Water Conservation, Data Logging

Project Information

The Smart Irrigation System integrates an ESP32 microcontroller with a soil moisture sensor and a relay to automate pump control based on real-time soil data. Moisture readings and pump ON/OFF statuses are continuously logged and uploaded to ThingsSpeak, accessible via both a static website and a mobile app. The system also includes a predictive analytics model to estimate the time until soil dries, enabling smarter irrigation timing. This technology improves water usage efficiency, reduces manual oversight, and supports healthy plant growth across scales, from home gardens to larger agricultural applications.

Project Objective

The objective is to design a smart and sustainable irrigation system that automates watering based on actual soil moisture readings. By integrating IoT capabilities and predictive forecasting, the system aims to reduce water waste, minimize manual intervention, and ensure optimal watering schedules for healthier plants. Remote access via a website and mobile app enhances usability and enables scalable deployment in various agricultural and horticultural contexts.

Project Features

• Real-time soil moisture detection
• Automated pump control via relay
• Remote access through static website and mobile app
• Continuous logging of moisture and pump data
• Cloud storage via ThingsSpeak
• Predictive forecasting of soil dryness
• Efficient water usage and sustainability focus
• User-friendly monitoring and control interfaces

Specifications

• Hardware components: ESP32 microcontroller, Soil moisture sensor, Relay module, Power supply (suitable DC source)
• Software components: ThingsSpeak for cloud logging, Mobile app for remote monitoring, Static website frontend, Predictive analytics firmware

Project Application

• Home gardens and ornamental plant watering
• Small-scale horticulture (kitchen gardens, nurseries)
• Medium to large-scale agriculture (fields, orchards)
• Greenhouse and polyhouse irrigation automation
• Remote or off-grid irrigation systems
• Educational IoT and agriculture projects

Project Advantages

• Water savings through moisture-triggered irrigation
• Reduced manual labor via automation
• Remote monitoring and control capability
• Optimized irrigation timing with predictive analytics
• Improved plant health by preventing under/over watering
• Scalable from small to large agricultural setups
• Supports sustainable farming practices

Project Limitation

• Requires reliable Wi‑Fi/internet for remote features
• Sensor accuracy may vary by soil type and placement
• Predictive model may need localized calibration
• Initial setup cost for hardware and hosting
• Hardware (sensors) may require periodic maintenance
• No fallback operation during connectivity or power loss

Future Scope

• Add weather/rain sensors to prevent unnecessary irrigation
• Incorporate temperature and humidity sensing (e.g., DHT11/DHT22)
• Introduce solar power or battery backup for off-grid use
• Deploy multi-zone irrigation with multiple relays
• Enhance predictive model with more environmental data
• Include local LCD or OLED display for offline monitoring

Conclusion

The Smart Irrigation System leverages IoT technology, automation, and predictive analytics to transform conventional watering approaches. Through real-time soil moisture detection, relay-controlled irrigation, cloud-based data logging, and dryness forecasting, the system ensures water-efficient and plant-healthy irrigation. Accessible via web and mobile platforms, it delivers scalable and intelligent water management—from home gardens to agricultural fields—positioning itself as a forward-looking solution for sustainable irrigation practices.

Report Contents

• Components List (BOM: Bill of Material)
• Block Diagram
• Flow Chart
• Components: Name, Images, Details

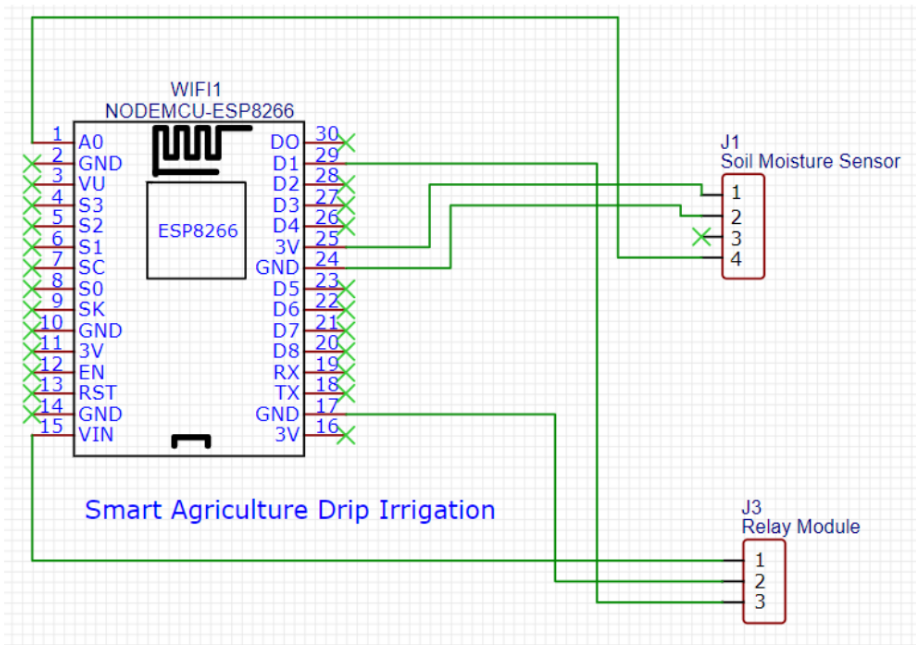

• Circuit Diagram
• Problem Statement
• Abstract
• Introduction
• Methodology
• Challenges and Solutions
• Performance Analysis
• Advantages
• Limitation
• Application
• Future Scope
• Conclusion
• Output Images

Project Deliverables

• Project Hardware
• Project Report
• Project Simulation
